What are the Yodeck Player specs?

What are the Yodeck Player specs?

Below, you will find the current Yodeck Player specs!

Yodeck Player (aka Raspberry Pi 4) Specs

You can compare the Raspberry Pi hardware by following this link here.

Hardware
Description and Details
Processor
  • Broadcom BCM2711, quad-core Cortex-A72 (ARM v8) 64-bit SoC @ 1.5GHz
Memory
  • 1GB or 4GB LPDDR4 (depending on model). If you do not know how much RAM you might need, click here.
Connectivity
  • 2.4 GHz and 5.0 GHz IEEE 802.11b/g/n/ac wireless LAN,
  • Bluetooth 5.0
  • BLE Gigabit Ethernet
  • 2 × USB 3.0 ports
  • 2 × USB 2.0 ports
GPIO
  • Standard 40-pin GPIO header (fully backward-compatible with previous boards)
Video & Sound
  • 2 × micro HDMI ports (up to 4Kp60 supported)
    Only the HDMI port0 is being used by the system. More details can be found here.
  • 2-lane MIPI DSI display port
  • 2-lane MIPI CSI camera port
  • 4-pole stereo audio and composite video port
Multimedia
  • H.265 (4Kp60 decode)
  • H.264 (1080p60 decode, 1080p30 encode)
  • OpenGL ES, 3.0 graphics
SD card support
  • Micro SD card slot for loading operating system and data storage
Input power
  • 5V DC via USB-C connector (minimum 3A1 )
  • 5V DC via GPIO header (minimum 3A1 )
  • Power over Ethernet (PoE)–enabled (requires separate PoE HAT)
Environment
  • Operating temperature 0–50ºC
Compliance
Production lifetime
  • The Raspberry Pi 4 Model B will remain in production until at least January 2026.
Dimensions
  • 88 x 58 x 19.5mm, 46g

Metallic Case

  • Passive Cooling | The case acts as passive cooling for the high demands of the Raspberry Pi 4 Model B.
  • Sliding Magnetic top | The case has a magnetic top to keep the ports safe when not in use and by removing the magnetic top you can very easily install a PoE hat.
  • Access to all ports | All the ports of the Raspberry Pi 4 while keeping the Pi safe.

SD Card

We include a 16GB SD Card (Class 10), around 12GB of which is usable for media storage space (more than 10 hours of video files).
All SD Cards come with software pre-installed and pre-configured with your Yodeck account.

Official Power Supply

We include the Official Raspberry Pi power supply, with a plug suitable for your country.


HDMI 2.0 Cable

We include a micro-HDMI to HDMI cable (male-to-male), tested for 4K resolution.

mini-hdmi cable

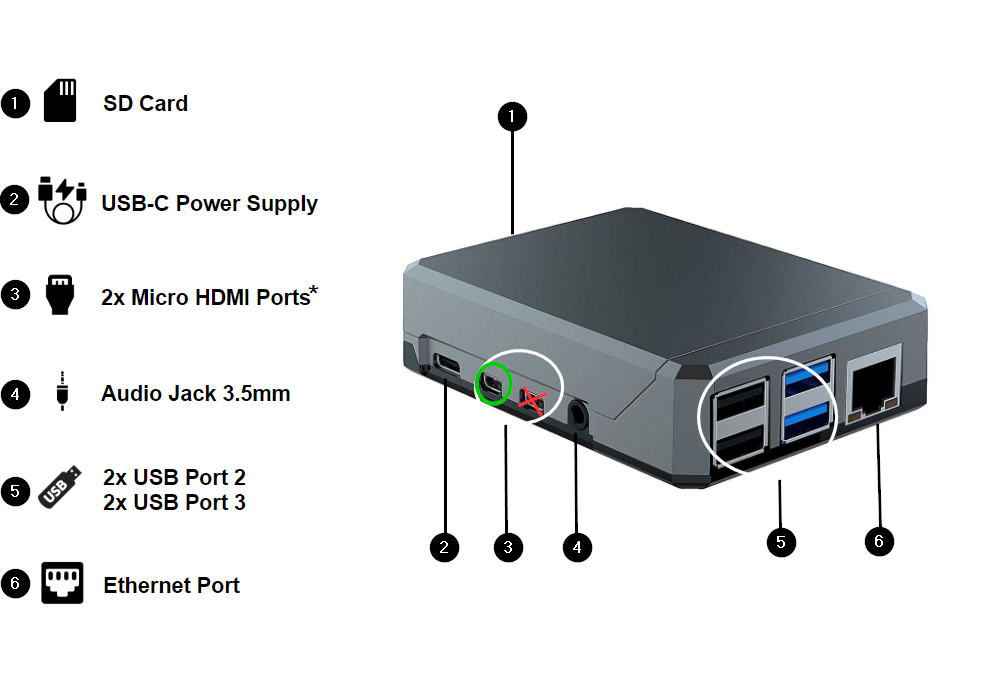

Connection Diagram

connection diagram
